MAP FEATURES
|
|
|
|
title cartouche
monumental cartouche
map maker
engraver
publisher
|
Printed in a monumental title cartouche, lower
right:-
A Modern MAP of WESTMORELAND, Drawn from the latest Surveys;
Corrected & Improved by the best Authorities. J. Ellis
sculpt.
The cartouche has a plinth with an urn, decorations of
scallop shell and scrolls, ribbons, etc. Behind the monument
is a coastal landscape and a three masted merchant ship.
Printed bottom centre:-
Printed for Carington Bowles in St. Pauls Churchyard, &
Robt. Sayer in Fleet Street.
|
|
|
|

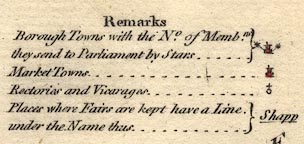

table of symbols
|
Printed upper left are:-
Remarks
Borough Towns with the No. of Membrs. they send to
Parliament by Stars ... [circle, tower, asterisks]
Market Towns ... [circle, tower]
Rectories and Vicarages ... [circle with cross]
Places where Fairs are kept have a Line under the name thus
... Shapp [underlined]
|
|
|
|
orientation
compass rose
up is N
|
The map has a compass rose; circle, star points for
cardinal directions, lines for half cardinal directions,
North marked by a fleur de lys, east marked by a cross,
tinted red and white. The map is printed with North at the
top of the sheet.
|
|
|
|
scale line
scale
|
Printed on the right below centre is a scale of:-
British Statute Miles 69 to a Degree
chequered and labelled at mile then two mile intervals,
tinted red and white. The 10 miles = 41.2 mm gives a scale 1
to 390617. The map scale is about
1 to 390000
6 miles to 1 inch
|
|
|
|
lat and long
lat and long scales
|
Printed in the map borders are scales of latitude and
longitude for a slanted rectangular projection; chequered at
1 minute, labelled at 10 minute intervals, tinted red and
white. The bottom scale is labelled:-
Longitude West from London.
From the scales the:-
longitude, Kendal = 2d 51m W
implying a prime meridian 6m W of Greenwich (St Paul's is
about 3m W).
The meridians at 2 and 3 degrees are drawn across the
map, vestiges of a graticule. The 54 and 55 degree parallels
are outside the map area, but to make the position certain
the 40mN mark is labelled:-
Nth. Lat. 54[d] 40[m]
The map includes from 2d0m to 3d41m W, from 54d 6m to 54d
44m N; the whole of Westmorland.
|
|
|
|
sea area
sea plain
|
The small sea areas either side of the Cartmel peninsula
are plain, not tinted.
|
|
|
|
coast line
coast shaded
foreshore
|
The coast line around the Leven and Kent Estuaries is
emphasised by shading, tinted blue. A small amount of
foreshore shallows is marked in part of the Kent
Estuary.
|
|
|
|
rivers
bridges
|
Rivers are drawn by a double line, then single line
tapering upstream. Some rivers are labelled, eg:-
Lone of Lune R.
Burrow R.
Ken or Can R.
Ruthy R [ie Rothay, but wrongly labelling the Trout Beck]
The major rivers are shown, with numerous
tributaries.
Bridges are implied where a road crosses and interrupts a
stream, but might be marked by a double line across a
stream, without a road; Kendal provides interesting
examples. Some bridges are labelled, eg:-
Nether Bridge [Kendal]
Levensbridge
Burrow Br [Low Borrow Bridge]
|
|
|
|
lakes
|
Lakes are drawn in outline, the shore line shaded, tinted
blue. Some are labelled:-
Ulles Lake
Haws Water [Hayes Water]
Broad Water [Haweswater]
Winander Mere
And others can be recognised:-
Brothers Water
Rydal Water [not tinted]
Grasmere
Easedale Tarn [?]
Kentmere tarn
Also notice a large area with ?tussock symbols between
Kellet and the Lune labelled:-
Lenebridge Fen
and in Lancashire:-
Coniston Mere
|
|
|
|
relief
hillocks
|
Relief is indicated by hillock symbols, shaded to the
east, tinted brown. These are drawn in lines to suggest
ranges of hills, but I wouldn't put too much trust in their
veracity. A few hillocks are larger, and labelled, eg:-
Hoiton Cragg [?Farleton Knott]
Dufton Pike
Murton Pike
The choice of these particular hills probably depends
more on who was being copied than an assessment of ground
truth. There are some other hills labels, eg:-
Whinfield Hill
Helvillon Hill
Jefferys Hill
but it is not clear what is labelled.
Kelloplaw Hill
is labelled because it is the meet of four counties.
|
|
|
|
woods
trees
forests
|
Groups of tree symbols, with some suggestion of
underbush, the are tinted green, indicate woodland. Most of
the woodlands are not labelled, but see:-
Mallerstang Forest
Milburn Forest
Wingfield Forest
|
|
|
|
parks
|
Parks are drawn in outline with fence palings, the
interior wood, tinted green. The park might be labelled, or
named by its house, eg:-
Cranswick Park
Preston Hall
Barton Park
And other parks might be recognised.
|
|
|
|
county
|
The county boundary is a bold dashed line, adjacent
counties are divided by a fine dotted line. Each county is
tinted along the inside of its boundary; Westmorland pale
brown, Lancashire yellow, Cumberland pink, Durham brown,
Yorkshire green. Adjacent counties are labelled, eg:-
PART OF CUMBERLAND
PART OF LANCASHIRE
Some features are shown because they are on the county
boundary?-
Kelloplaw Hill [Wmd/Cmd/Dhm/Yrk]
Rey Cross [Wmd/Yrk]
Hollow Mill Cross [Wmd/Yrk]
County Stone [Wmd/Yrk/Lan]
Birkstone [Wmd/Lan]
3 Shire Stones [Wmd/Lan/Cmd]
Dunmail Raise Stones [Wmd/Cmd]
A few features are shown outwith the county for the sake
of continuity.
|
|
|
|
settlements
electoral data
fairs
|
Settlements are marked by a circle with added elements,
further differentiated by style of labelling.
|
|
towns |
circle, buildings, tower, tinted red; labelled in upright
lowercase text, eg:-
Kendal
Orton
and in upright block caps:-
APPLEBY
|
|
|
the de jure county town, with two asterisks indicating it
returns two members to Parliament.
|
|
villages
hamlets
|
circle; labelled in italic lowercase text, eg:-
Askham
Stanley [Staveley]
Sleddale
the last an example of a community with no nucleated
settlement.
A cross attached to the circle indicates a rectory or
vicarage; and underline indicates a fair. Village, hamlet,
house cannot be distinguished.
Shapp or Shaw
|
|
|
|
|
castles |
circle with a flag, eg:-
Pendragon Castle
Kendal Castle
|
|
|
|
|
|
|
roads
|
A network of roads is drawn by double line.
Destinations of some roads is labelled at the county
boundary, eg:-
fr. Lancaster
to Barnard Cas.
or the road might be extended to a town in the adjacent
county, as Penrith and Keswick.
|
|
|
|
miscellaneous
|
|
|
|
|
antiquities
stones
|
A stone is drawn by the road at the boundary with
Lancashire, labelled:-
Birkstone
Three upright stones are labelled:-
3 Shire Stones upon Wry Nose Head
A group of upright stones is labelled:-
Dunmail Raise Stones
A group of upright stones, where the road from Orton
joins the Kendal to Shap road, is labelled:-
Stone Heaps
A stone on a hillock at the meet of Westmorland,
Yorkshire and Lancashire is labelled:-
County Stone
|
|
|
|
crosses
|
A cross on the Durham border is labelled:-
Rey Cross
and on the Yorkshire border is:-
Hollow Mill Cross
|
|
|
|
mines
copper mines
lead mines
coal mines
|
There are dots, roughly diamond shape, labelled:-
Lead Mines
south of Milburn Forest, and south of Eaglehurst, in the
north east of the county.
Labelled, but not marked, are:-
Copper Mines
in upper Langdale
And by Stainmoor is:-
Coal Pitts
|
|
|
|
tanyards
|
A circle south of the Barnard Castle road is
labelled:-
Tanpitts
|
|
|
|
antiquities
earthworks
|
A double circle south west of Eamont Bridge is
labelled:-
King Arthurs Round Table
|
