title cartouche
baroque cartouche
map maker
Printed in a baroque cartouche, lower right:-
snip from map image
A NEW MAP of the COUNTIES of CUMBERLAND and WESTMORELAND. Divided into their respective WARDS From the Best Surveys & Intelligencies Illustrated wth. Historical Extracts relative to Natural History Produce, Trade & Manufactures. Shewing also the Rectories & Vicarages, With various other Improvements 1760.
Printed at the bottom:-
Printed for T. Bowles in St. Pauls Church Yard, Robt. Sayer, [ ] in Fleet Street, & John Bowles [ ] in Cornhil.
The imprint at the bottom has names deleted, perhaps John Tinney and 'and Son' from John Bowles.

dedication Printed upper left in a baroque cartouche is a dedication:-
To the Honble. Sr. James Lowther of Lowther in WESTMORELAND, Bart. Lieutenant & Custos Rotulorum of Westmoreland and Lieutenant of CUMBERLAND This MAP is humbly Inscrib'd

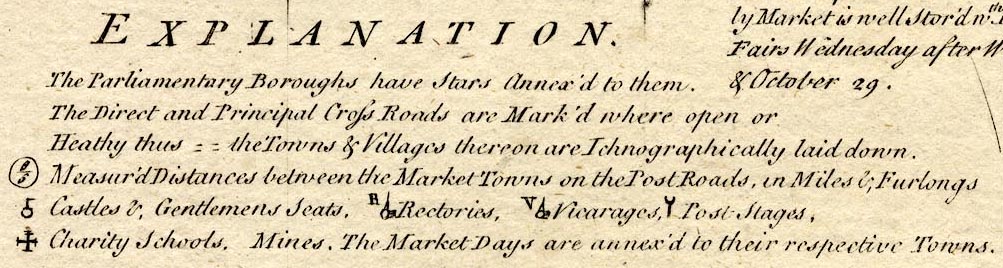

table of symbols Printed lower centre is an:-
snip from map image
The Parliamentary Boroughs have Stars Annex'd to them.
The Direct and Principal Cross Roads are Mark'd where open or Heathy [double line, dotted] the Towns & Villages thereon are Ichnographically laid down.
[circle enclosing 8/5] Measur'd Distances between the Market Towns on the Post Roads, in Miles & Furlongs.
[circle, post and flag] Castles & Gentlemens Seats, [circle, building and tower R] Rectories, [circle, building and tower V] Vicarages, [post with a crescent atop] Post Stages, [cross potent] Charity Schools. Mines The Market Days are annex'd to their respective Towns.

descriptive text Printed in spare spaces on the map sheet are blocks of descriptive text about the counties and various towns, etc. The places described are:-
County of Cumberland
County of Westmoreland
Dunmail raise stones
Eden, Picts Wall, etc
Levens Bridge
Milthrop [Milnthorpe]
Winander Mere

up is
There is no indicator of orientation, but the map has a graticule, a grid of latitude and longitude lines. The map is printed with North at the top of the sheet.

scale line
Printed with the scale line:-
snip from map image
British Statute Miles 69 1/2 to a Degree
chequered in miles to 5 then in fives; labelled 1 to 5 then 20. The 20 miles = 133.9 mm gives a map scale 1 to 240380. The map scale is about:-
1 to 240000
4 miles to 1 inch

lat and long scales
lat and long grid
snip from map image
Printed in the map borders are scales of latitude and longitude for a trapezoidal projection; chequered in degrees, labelled in tens. The bottom longitude scale is labelled:-
Longitude West from London.
Measuring from the scales the:-
longitude, Kendal = 2d 51m W
Kendal is 2d 45m W. It looks as if the map's prime meridian is 6 minutes East of Greenwich, which is unlikely. Looking at other features on this map does not encourage trust in its accuracy, so this estimate of the prime meridian can be ignored.

sea area
sea plain
The sea areas are plain. Some sea areas are labelled, eg:-
snip from map image
Solway Frith now Eden R.

coast line
coast form lines
snip from map image
The coast line is emphasized by form lines which may be overlaid by dotting indicating foreshore sands. One area of sands is labelled:-
Burr Sand
just south of Seascale. The extensive sands in the Kent and Leven estuaries are not shown; Duddon Sands are.*COMMENT3 Headlands are recognizable, only two are labelled:-
St. Bees Head

Rivers are drawn by drawn by a double line with stream lines, tapering to a single wiggly line tapering upstream. Some rivers are labelled, eg:-
snip from map image
Lone or Lune R.
Can R.
Blenkeynbeck R.
Labelled south of Levens Bridge is:-
copied from other maps; no waterfall here.
Bridges are implied where a road crosses and interrupts a stream, and might be marked elsewhere by a double line across a stream as at Nether Wasdale or at Dalston.
snip from map image
Most bridges are not labelled, although some names are implied by a settlement name. A few bridges are labelled, eg:-
Nether Bridge [in Kendal]
Burrow Bridge [Low Borrow Bridge]
Levens Bridge
The last is mentioned in a descriptive text.

lakes snip from map image
Lakes are drawn by an outline with form lines. Some lakes are labelled:-
Coniston Mere
Broad Water [Ennerdale Water]
Broad Water [Hawes Water]
Haws Water [Hayeswater]
Ulles Lake [Ullswater]
Wiborn Water [Thirlmere]
Winander Mere
Other lakes or tarns might be recognized, eg:-
Bleaberry Tarn
Burnmoor Tarn
Buttermere lake
Crummock Water
Derwent Water
Devoke Water
Easedale Tarn
Grasmere lake
Grisedale Tarn
Kentmere Tarn
Loweswater lake
Rydal Water
Wast Water

snip from map image
Hill hachuring is used to indicate relief. Although some valleys are successfully, if gently, shown, the overall mountainous nature of the region is not. Some hill areas are labelled, eg:-
Derwent Fells Mountains
Hard Knot Hill

snip from map image
Woodland is suggested by groups of tree and bush symbols. Some of the forest areas are labelled, eg:-
Englewood Forest
Martendale Forest

parks snip from map image
Parks are drawn by a ring of fence palings. A park might be labelled, eg:-
Barton Park
Holm Park
or named by its great house, eg:-
Preston Hall

county snip from map image

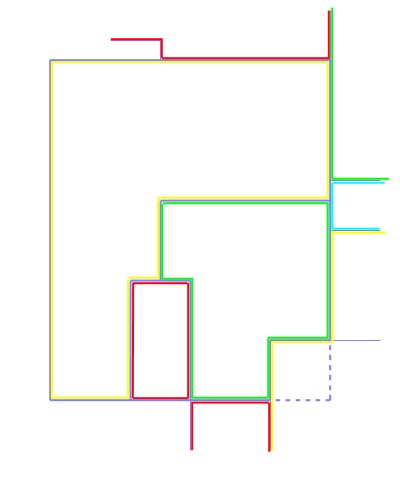

County boundaries are a dashed line, and are emphasized by a colour tint on the inside for each area, including adjacent counties; Westmorland green, Cumberland yellow, Lancashire red, Scotland red, Northumberland green, Durham blue, Yorkshire yellow:-
snip from map image
The county areas are labelled, eg:-

wards snip from map image

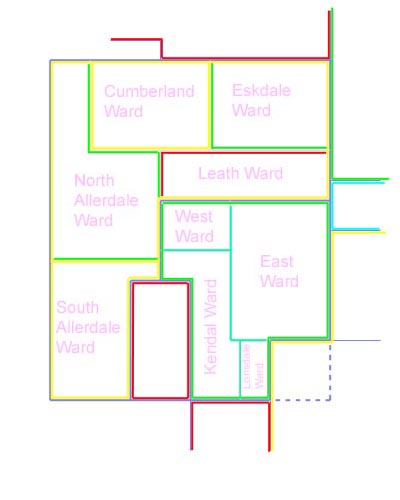

Ward boundaries are a lighter dashed line, emphasized by a colour tint on the inner side of each ward. The use of colours is not straightforward, or consistent. The county boundary colours have priority, but the rest of a ward has its own colour - for example Eskdale Ward tints are yellow where the border is the county boundary, and green for its internal boundary with other wards. Sometimes the ward and county tints are the same, as South Allerdale Ward. The too-clever scheme is given up for Westmorland where the ward boundaries are all tinted the same. A diagram might help:-
snip from map image

settlements Settlements are marked by a circle with added elements, or groups of blocks or shaded areas; further differentiated by style of labelling. Symbols are explained in the table of symbols.
  street plan
  market days
blocks and shaded areas on a street plan with town walls; labelled in upright block caps:-
snip from map image
CARLILE / Ma. Sat. V
The market day is Saturday; there are two crosses potent for charity schools; V is for Vicarage. Notice the two suburbs outside the English Gate and Scotch Gate.
  street plan
  market days
  electoral data
blocks on a street plan 'ichnographically laid down'; labelled in upright lowercase text, eg:-
snip from map image
Penrith / Mar. Tues. / R
Market day Tuesday; two crosses potent for charity schools; R is for Rectory; post and crescent symbol for a post stage.
snip from map image
Kendal / Mar. Sat.
Market day Saturday; notice the bridges and castle.
APPLEBY / Mar. Sat. / V
In upright block caps for its de jure status as county town; Market day Saturday; V for Vicarage; two stars for members sent to Parliament; notice the castle.
  villages circle, buildings and tower with a spire; labelled in italic lowercase text, eg:-
snip from map image
Betham / V
Salkeld Magna / R
V Vicarage; R Rectory.
or blocks, if on a road, eg:-
snip from map image
  hamlets circle, small tower; labelled in italic lowercase text, eg:-
or circle and line, eg:-
snip from map image
circle, post and flag; labelled in italic lowercase text, eg:-
snip from map image
Kendal Castle

road distances
post roads
snip from map image
Roads are drawn by double line, solid or dotted. The table of symbols takes solid for granted but explains:-
The Direct and Principal Cross Roads are Mark'd where open or Heathy [double line, dotted] the Towns & Villages thereon are Ichnographically laid down.
Comparing the routes with present day roads and tracks there are some routes which are hard to believe.
On the post roads a circle with figures gives:-
Measur'd Distances between the Market Towns on the Post Roads, in Miles & Furlongs.
Assuming the distances indicate which are post roads, they are:-
from the south, Lancashire; 11'6 from Lancaster via Burton to Kendal, Westmorland; 26 to Penrith, a post stage, and 18'4 to Carlisle, Cumberland.
from Kendal, 13'4 to Ambleside, Westmorland; 10'2 to Keswick, and 14'2 to Cockering ie Cockermouth, Cumberland.
from Egremont, 14 to Cockermouth, 25 to Calisle, Cumberland.


roman wall
Hadrian's Wall is drawn by a double dotted line from Boulness through Carlile, then east into Northumberland, labelled:-
snip from map image
The Picts Wall Demolish'd

roman road
A road NW across the corner of Cumberland about Spadeadam Waste is labelled:-
The Maiden Way

roman forts
SE of Kirkby Thore is a circle labelled:-
The Camp on Speedy More

A double ring west of Eamont Bridge is labelled:-
snip from map image
K. Arthurs Round Table

stone circles
A group, perhaps a circle, of stones by the road S of Shap is labelled:-
snip from map image
Stone Heap

stones At the meet of Westmorland, Cumberland and Yorkshire, SW of Middleton, is:-
The County Stone
Two standing stones are labelled:-
Three Shire Stones upon Wry Nose Head
One of the descriptive texts is about Dunmail Raise Stones.

crosses On the county boundary east of Pendragon is a cross:-
Hollow Mill Cross

beacons Labelled by a hill north of Isel is:-
Newton Beacon
East of Orton is hill hachuring and label:-
The Beacon

lead mines
copper mines
East of Knock are:-
Lead Mines
and on Rumary Fell, SE of Dufton Pike:-
Lead Mines
both marked by dots.
Beside Derwent Water, level with one of the islands, is labelled:-
snip from map image
Royal Mines
The german miners in the time of Elizabeth I had a base on Derwent Island.
In the Newlands Valley is:-
snip from map image
Copper Mines

black lead mines
Around Watendlath in Borrowdale is labelled:-
Black Lead Mines
They are not plotted at Seathwaite.
