included in:- |
![]() |
|
Town Hall, Kendal: clock | ||
locality type:- | clock | |
locality type:- | carillion | |
|
||
MN photo:- |
The town hall clock is a flat bed turret clock movement installed by John Smith and
Sons, Midland Steam Clock Works, Derby, 1896. It has a six legged gravity escapement. |
|

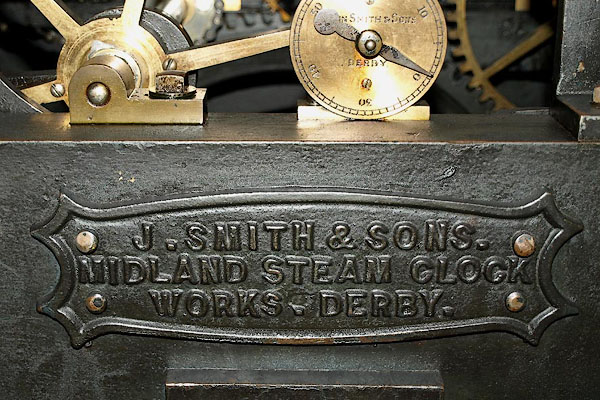

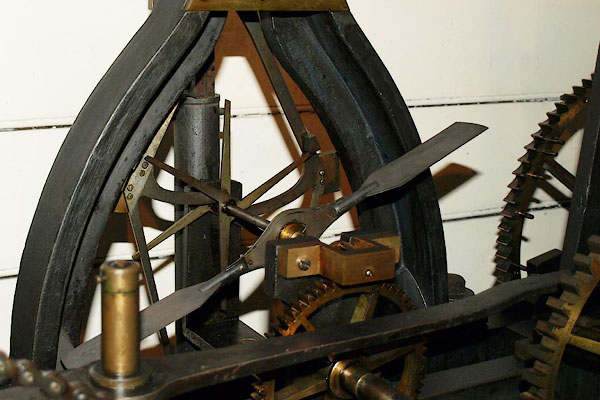

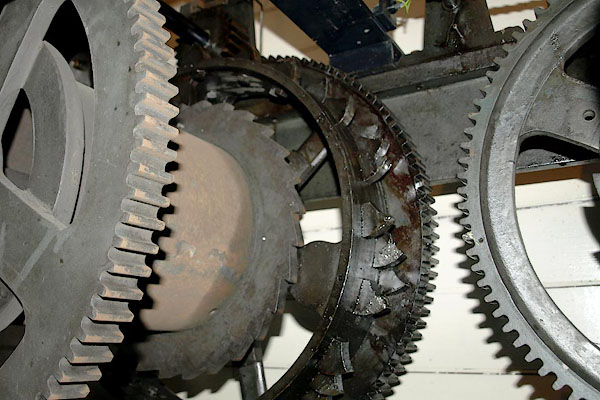

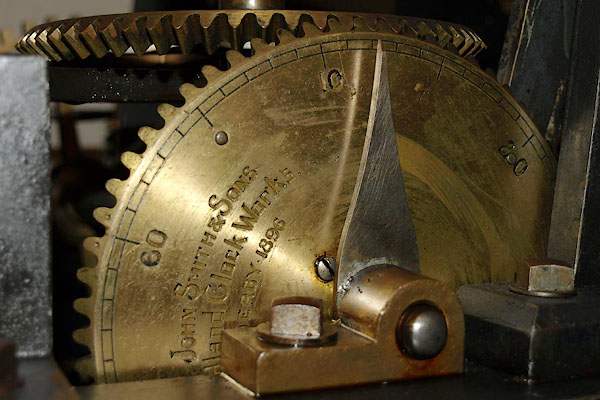

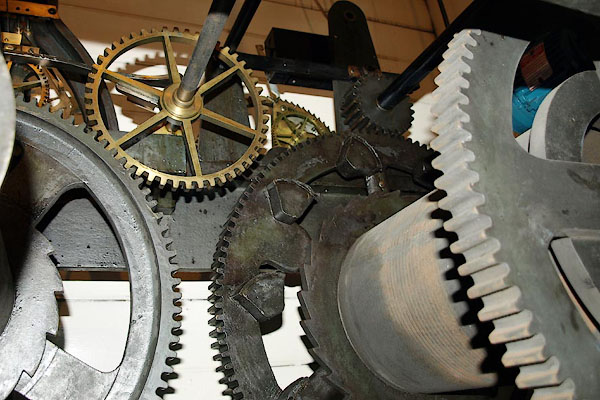

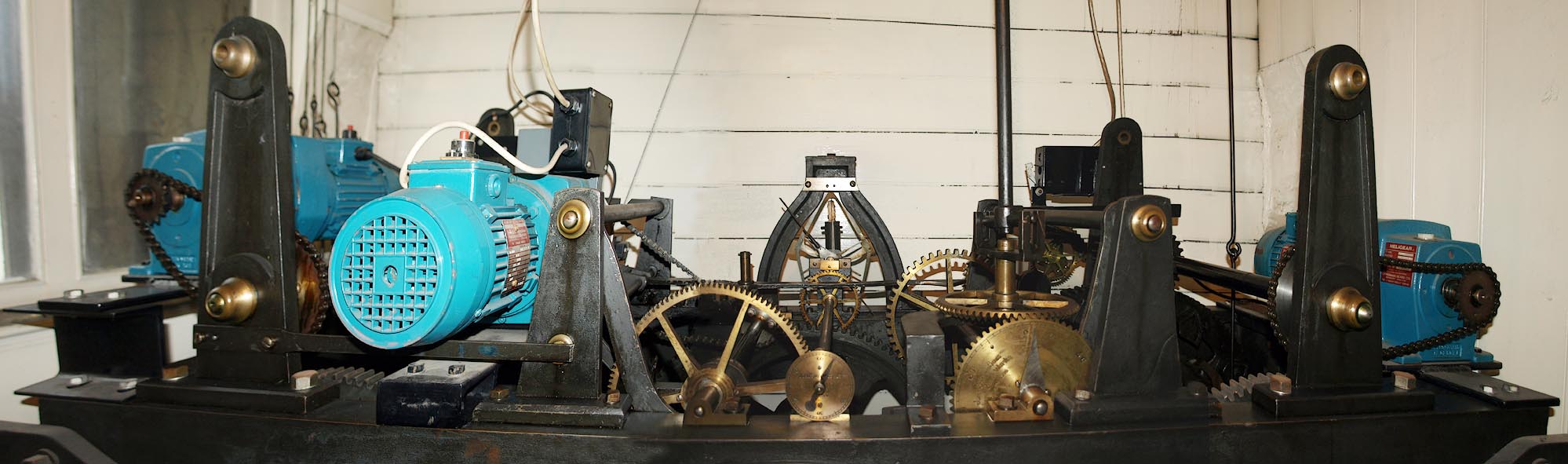

![]() BRW79.jpg Six legged gravity escapement. (taken 17.11.2009) ![]() Click to enlarge BRX72.jpg (taken 17.11.2009) ![]() BRW80.jpg Maker's plate:- "J. SMITH &SONS. / MIDLAND STEAM CLOCK / WORKS. DERBY." (taken 17.11.2009) ![]() BRW81.jpg Minute indicator dial marked on the back of a bevel gear leading to the hands. Inscribed:- "JOHN SMITH &SONS / [ ] land Clock Works / [D]ERBY 1896" (taken 17.11.2009) ![]() BRW82.jpg (taken 17.11.2009) ![]() BRW83.jpg Part of drive train; the pegs are for chiming the quarters. (taken 17.11.2009) |
||
The clock actuates a music barrel which plays the carillion in the tower. The bells
are mounted in a vertical frame; suspended for chiming, not on wheels for ringing.
The music barrel was fitted in the 1890s? A hand chiming frame is still in place,
but no longer connected to the bells. |
||

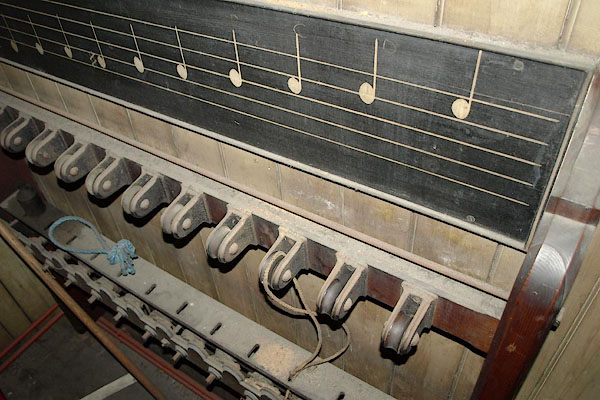

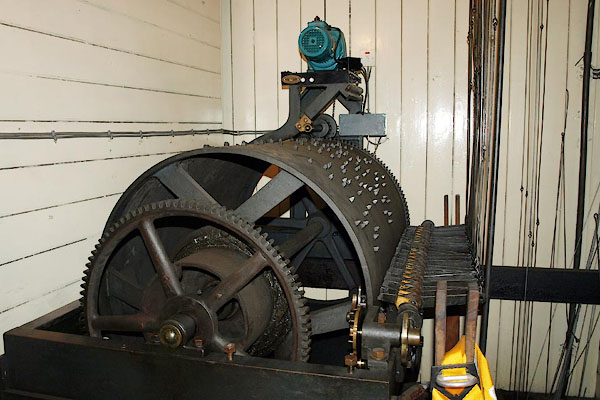

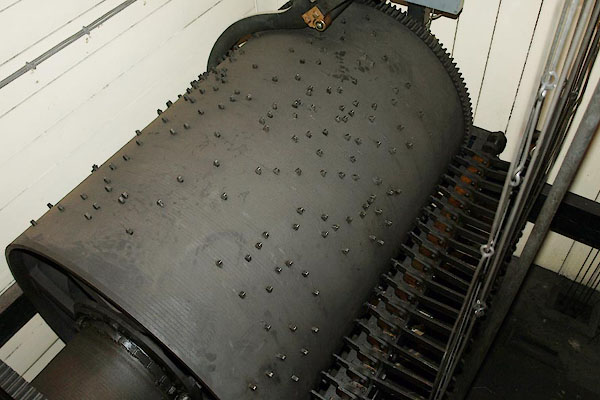

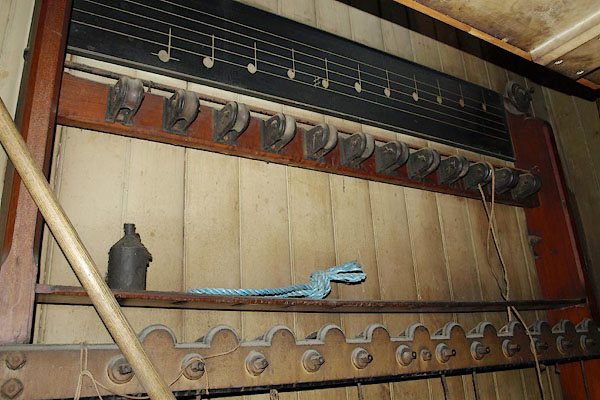

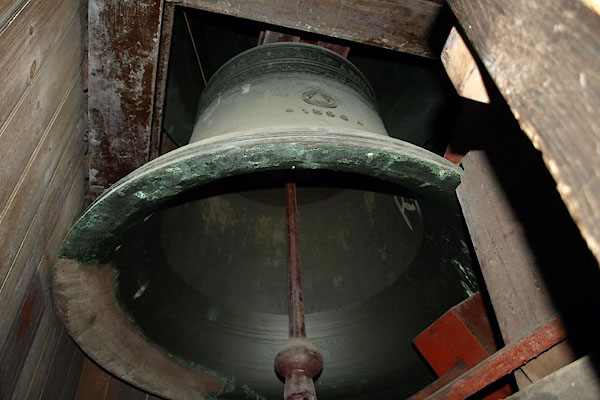

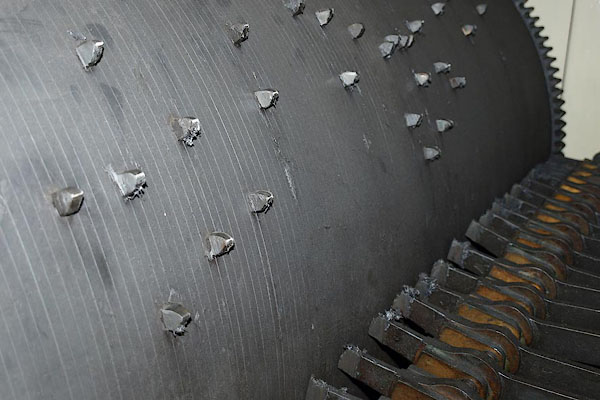

![]() BRW75.jpg Music barrel. (taken 17.11.2009) ![]() BRW76.jpg Music barrel. (taken 17.11.2009) ![]() BRW77.jpg Music barrel. (taken 17.11.2009) ![]() BRW78.jpg One of the bells in the tower. (taken 17.11.2009) ![]() BRW84.jpg The disused hand chiming frame, with a musical scale. (taken 17.11.2009) ![]() BRW85.jpg The disused hand chiming frame, with a musical scale. (taken 17.11.2009) |
||
The tunes played are (were?) - on Sunday, Devotion by T Scarisbrick of Kendal; Monday,
Kelvin Grove; Tuesday, The British Grenadiers; Wednesday, All Through the Night; Thursday,
When the King Enjoys His Own Again; Friday, Garry Owen; and Saturday, There's no Luck
About the House. |
||
The bright blue electric motors for winding the clock, and for running the music barrel
were fitted recently by W Potts and Sons, Leeds. |
||
|
