Smardalegill Viaduct, Crosby Garrett
Smardalegill Viaduct
site name:-   South Durham and Lancashire Union Railway
site name:-   Scandal Beck
locality:-   Smardale Gill
locality:-   Smardale
civil parish:-   Crosby Garrett (formerly Westmorland)
civil parish:-   Waitby (formerly Westmorland)
county:-   Cumbria
locality type:-   railway viaduct
locality type:-   viaduct
coordinates:-   NY72690691
1Km square:-   NY7206
10Km square:-   NY70


photograph
photograph

evidence:-   old map:- OS County Series
placename:-  Smardale Gill Viaduct
source data:-   Maps, County Series maps of Great Britain, scales 6 and 25 inches to 1 mile, published by the Ordnance Survey, Southampton, Hampshire, from about 1863 to 1948.
"Smardale Gill Viaduct"

evidence:-   database:- Listed Buildings 2010
placename:-  Smardalegill Viaduct
source data:-
courtesy of English Heritage
"SMARDALEGILL VIADUCT OVER SCANDAL BECK / / / CROSBY GARRETT / EDEN / CUMBRIA / II[star] / 73052 / NY7268706904"
source data:-
courtesy of English Heritage
"Railway viaduct. Completed 1860 for South Durham and Lancashire Union Railway; Thomas Bouch engineer (?) , contractor Wrigg of Preston. Rough - hewn sandstone blocks with dressed arch soffits. 90ft high (mdx.) and c. 550ft long with 14 semi- circular arches, each spanning c.30 ft. Tapered piers; battered pilasters to abutments. Cornice carries parapet, c.2 ft high; track bed c.25 ft wide. Crosses parish boundary with WAITBY. Disused"


photograph

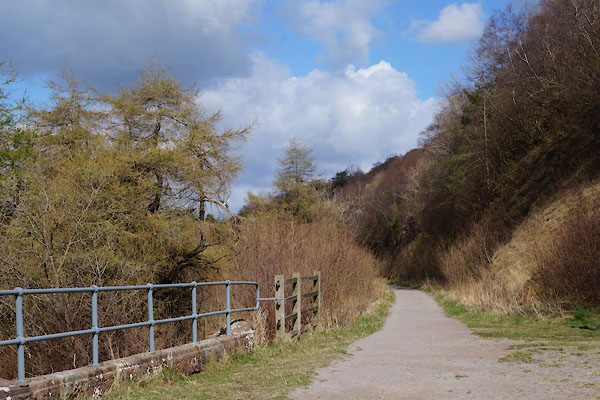

CAI65.jpg  View E.
(taken 14.4.2014)
photograph

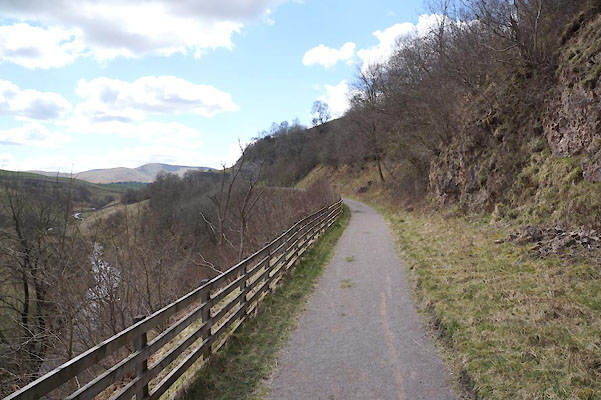

CAI64.jpg  View W.
(taken 14.4.2014)


photograph
photograph
Click to enlarge
photograph

hearsay:-
The viaduct became unsafe and there were falls of masonry. Listed building consent to demolish was refused on appeal after a public enquiry. Repair estimates were between L150000 and L350000, demolition would be L66000 or L175000 if the stone were taken away. A trust has taken responsibilty for it, and restored it.
It has 14 arches, is 184 yards long, 90 feet high. Built by Sir Thomas Bouch, 1860-61.
